Running Parameter Sweeps¶
fish2eod can be used to save and load data from models
from tempfile import TemporaryDirectory
import matplotlib.pyplot as plt
from fish2eod import (
BaseFishModel,
Circle,
ElectricImageParameters,
IterativeSolver,
ParameterSet,
ParameterSweep,
load_from_file,
plotting,
)
class PreyClass(BaseFishModel):
def add_geometry(self, prey_cond, **kwargs):
prey = Circle((3, 2), 0.5)
self.model_geometry.add_domain("prey", prey, sigma=prey_cond)
parameter_set = ParameterSet("sigma", prey_cond=[0.00023 / 10, 0.00023, 0.00023 * 10])
parameter_sweep = ParameterSweep(parameter_set)
d = TemporaryDirectory() # VERY IMPORTANT - do not do this!
# you want to use a proper save directiory. This directory created as is WILL BE DELETED when python closes.
EIP = ElectricImageParameters(domains=("prey",), value=BaseFishModel.WATER_CONDUCTIVITY)
solver = IterativeSolver(
"Example",
d.name,
PreyClass,
parameter_sweep,
fish_x=[-15, 15],
fish_y=[0, 0],
image=EIP,
)
solver.run()
loaded_solution = load_from_file(d.name + "/Example")

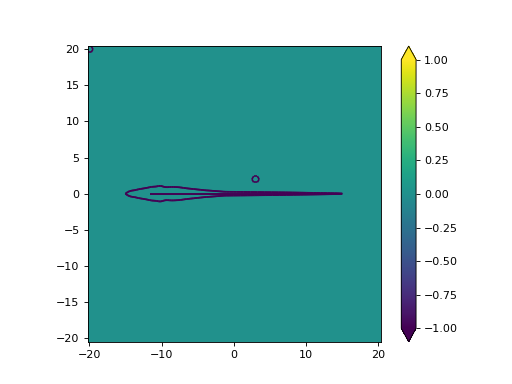

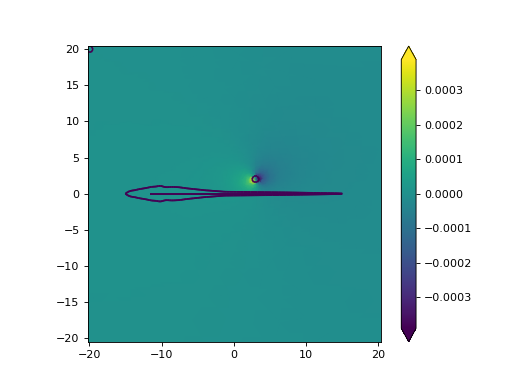

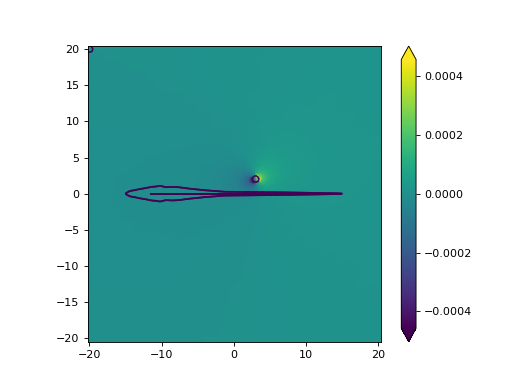

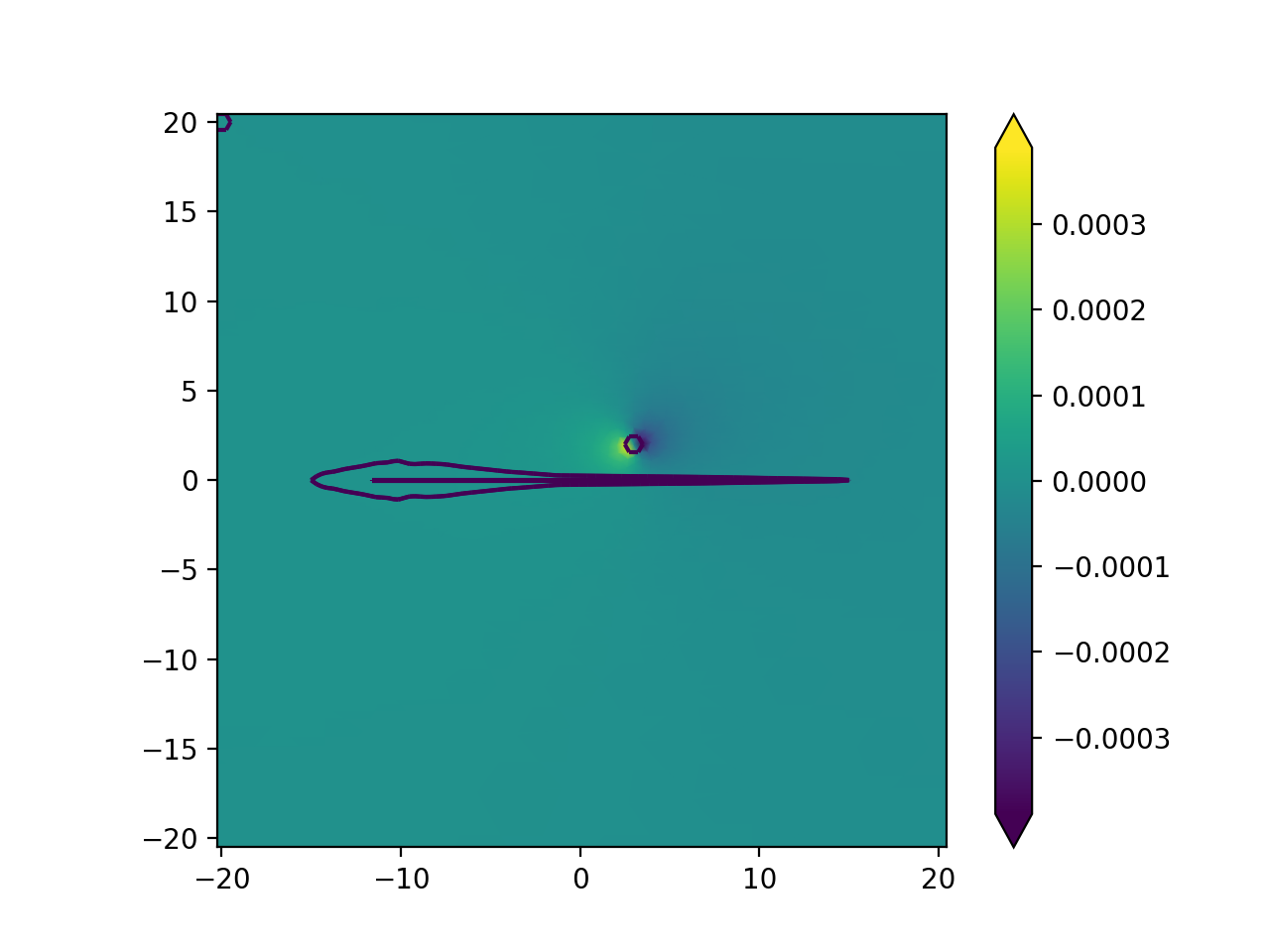

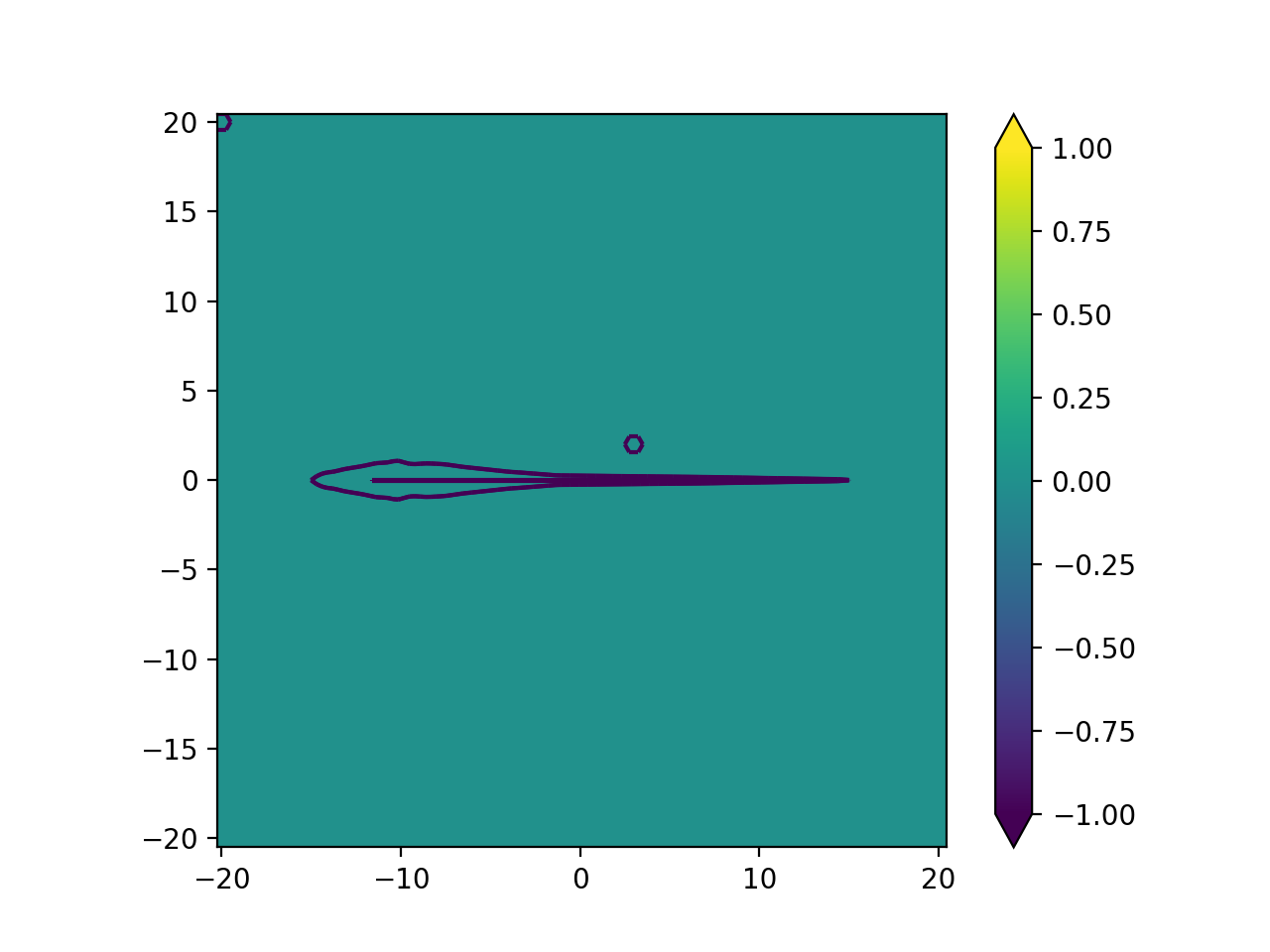

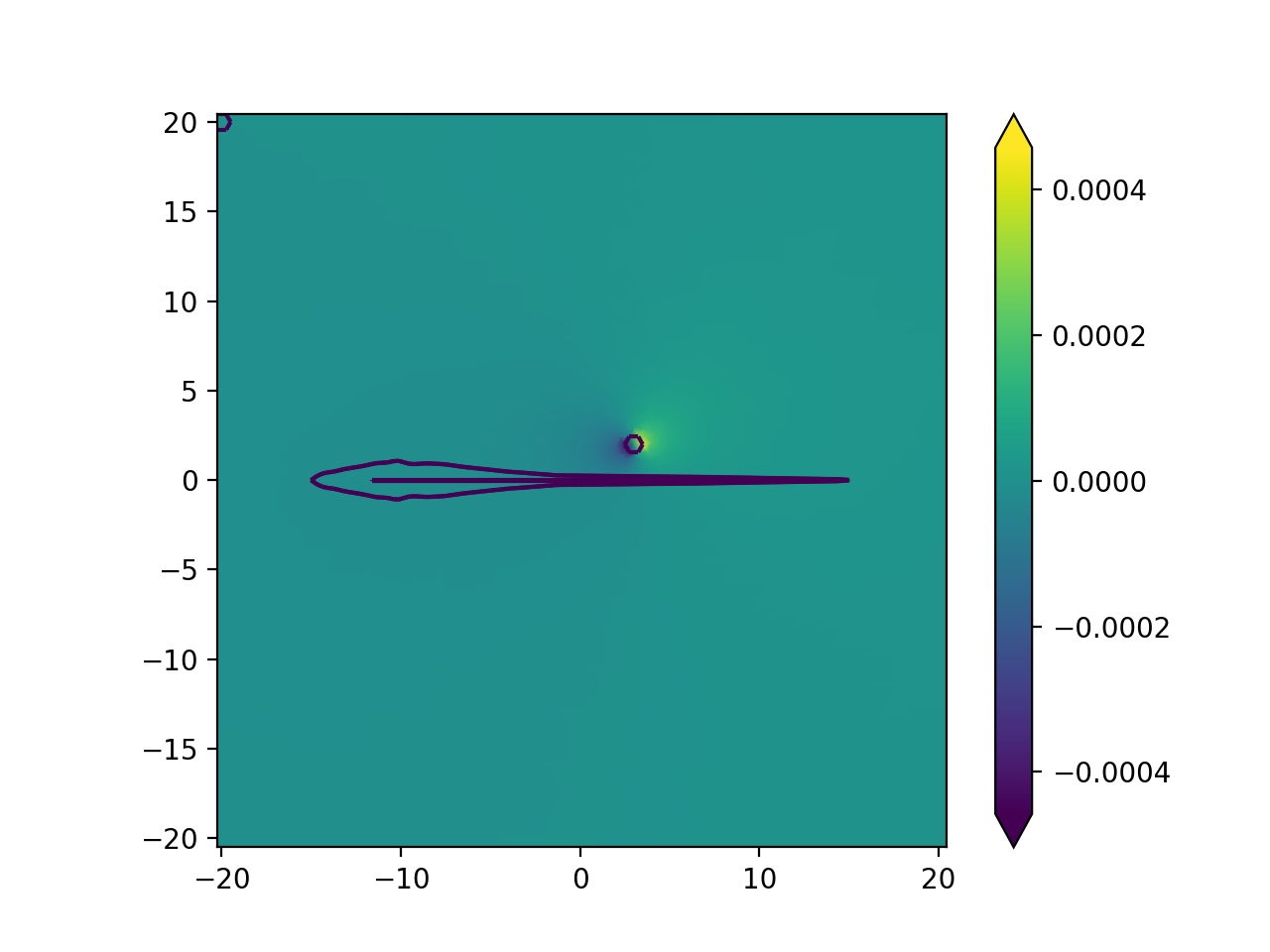

for ix in range(3):
plt.figure()
plotting.mesh_plot_2d(loaded_solution, "solution", sigma=ix)
plotting.plot_outline(loaded_solution, sigma=ix)
