Computing Electric Images

Computing electric images in fish2eod is quite simple and only requires a bit of additional metadata. The electric image is the field perturbation causes by an object being introduced to the EOD. Conceptually this is the simulation run twice. Once with an area of choice (some set of domains) and a second simulation with those domains removed.

Computationally this is much easier to perform is the domains aren’t removed but made electrically invisible (set the conductivity to that of the background). Using the ElectricImageParameters you can specify a list of domains with the domains argument, and the background conductivity (often that of water, however it can be any conductivity) through the values argument.

import matplotlib.pyplot as plt

from fish2eod import (
    BaseFishModel,
    Circle,
    ElectricImageParameters,
    compute_transdermal_potential,
)


class PreyClass(BaseFishModel):
    def add_geometry(self, **kwargs):
        prey = Circle((3, 2), 0.5)

        self.model_geometry.add_domain("prey", prey, sigma=1)


model = PreyClass()
EIP = ElectricImageParameters(domains=("prey",), value=model.WATER_CONDUCTIVITY)
parameters = {"fish_x": [-15, 15], "fish_y": [0, 0], "image": EIP}
model.compile(**parameters)
model.solve(**parameters)

organ, e_image = list(compute_transdermal_potential(model))[0]

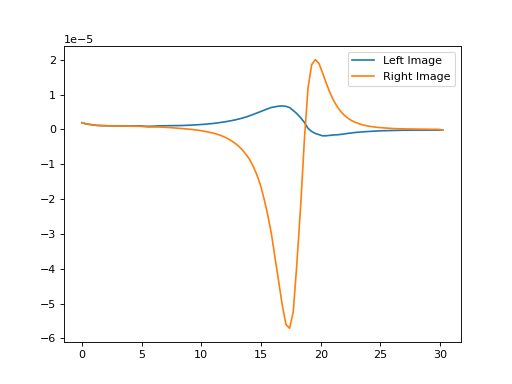

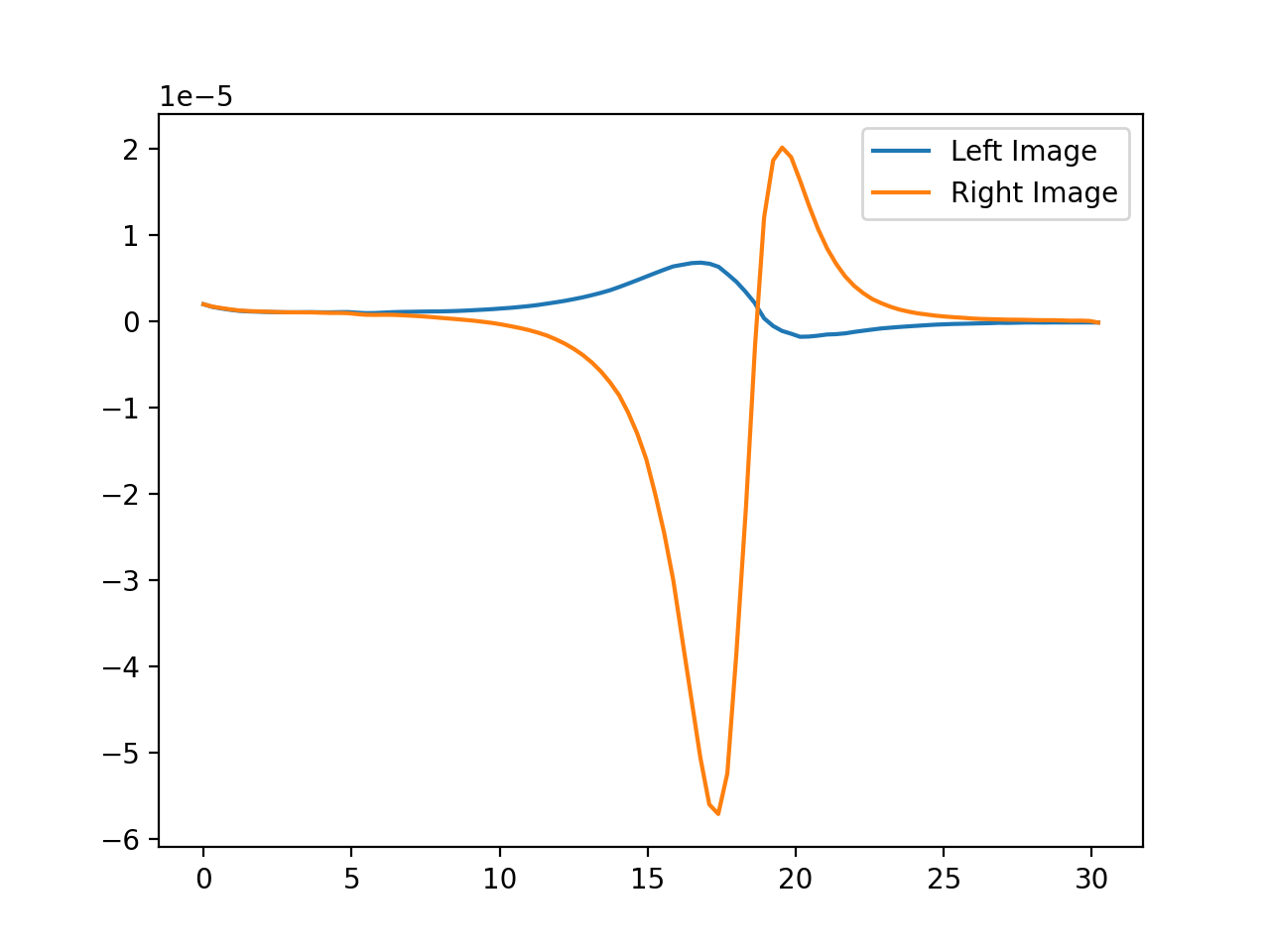

plt.plot(organ.left_arc_length, e_image.left_tdp)
plt.plot(organ.right_arc_length, e_image.right_tdp)

plt.legend(["Left Image", "Right Image"])

(Source code, png, hires.png, pdf)

../../_images/example_prey_image.png

To analyse the electric images, compute_transdermal_potential is used to compute the data after the model is solved. You’ll get back a set of geometry data for the left and right sides of the body, and the transdermal potential for the right and left sides of the body.

The skin geometry returned has the following fields

  • left_inner

  • left_outer

  • right_inner

  • right_outer

  • left_arc_length

  • right_arc_length

Where _inner is (x, y) coordinates of the inner skin, and similarly for _outer. The arc lengths are the corresponding arc length along the inner skin (distance travelled if you followed along the skin).
